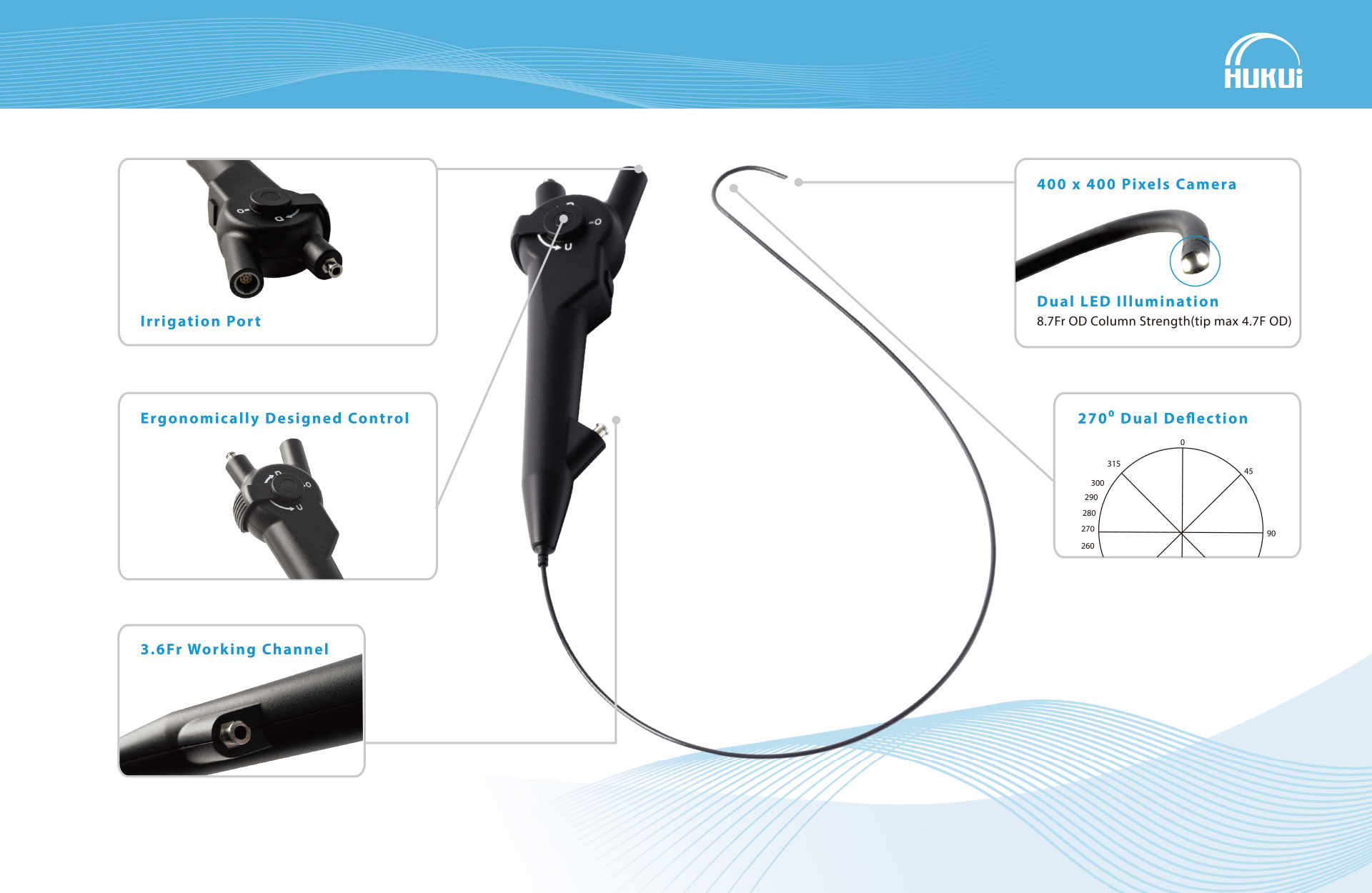

“HiScope” disposable digital ureteroscope provides clear visual non-invasive examination and ureteral obstruction treatment through the urethra and bladder and up the ureter to the point where stone is located. This reduces patient recovery time tremendously. “HiScope” is disposable and sterile for enhanced patient safety and minimizes the risk of cross contamination. “HiScope” also eliminates any maintenance cost like reprocessing and repairs. This simpli es work ows in the operation room and daily practices.
Handle | |
Model | EN120U |
Field of View | 120゜±3゜ |
Pixel | 400 x 400 |
Working Channel Diameter | 3.6 Fr / 1.2mm |
Distal Tip Diameter | 8.7 Fr / 2.9mm |
Insertion Tube Outer Diameter | ≦ 4.7 Fr / 1.6mm |
Angulation Range | Up 270゜/ Down 270゜ |
Depth of Field | 5mm ~ 100mm |
Working Length of Shaft | 650 mm |
LED Color Temperature | 5000K ~ 6500K |
Camera Control Unit (CCU) | |
Image Freezing | YES |
Video Recording | YES |
Storage Media | YES |
HDMI/DVI Output Format | 1080P @60 |
CVBS output Format | 5761 @50 |
Key for Camera Size | Freeze, Video Recording, AWB |
Key for Main Board | Video Recording, Up, Down, Menu, Freeze, Delete |
Video Recording Format | YES, with H.264 Compression |
SD Card | Up to 128G |
Power Source | DC 12V |
Board Size | Customization |

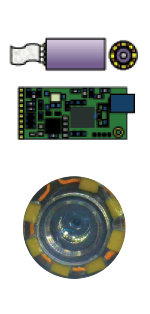

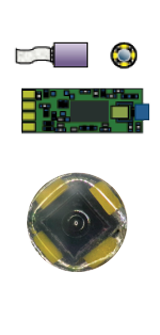

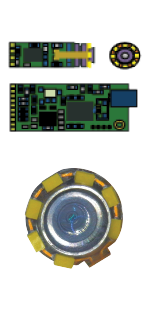

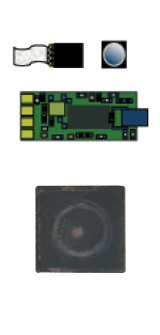

Module Component |  |  |  |  | |
Specication | Resolution | 400 x 400 | 400 x 400 | 1280 x 720 | 1280 x 720 |
Outline Diameter | Ø 2mm | 1mm x 1mm | Ø 3.5mm | Ø 3.9mm | |
Light | LED | NO | LED | LED | |
Depth of | 5mm ~ 100mm | 5mm ~ 100mm | 10mm ~ 100mm | 10mm ~ 100mm | |
Interface | Mini USB | Mini USB | Micro USB | Micro USB | |
Cable Length | 1M | 1M | 1M | 1M | |
Application | Bronchoscope, | Laryngoscope, | |||
Image Sensor | OmniVision OH01 Series |
Sensor Type | CMOS |
Image Resolution | 1280 x 800 pixel |
Image Updating Rate(Frame Rate) | Larger than 25fps |
Image Transmission Interface | MIPI |
Cable Length | 100cm ± 10% |
Depth of Field | 15 ~ 50mm |
Model | EN120B | EN220B | EN280B | EN320B |
Field of View | 120゜± 3゜ | 120゜± 3゜ | 120゜± 3゜ | 120゜± 3゜ |
Pixel | 400 x 400 | 400 x 400 | 400 x 400 | 1280 x 720 |
Working Channel Diameter | 3.6 Fr / 1.2 mm | 6.6 Fr / 2.2 mm | 8.4 Fr / 2.8 mm | 9.6 Fr / 3.2 mm |
Distal Tip Diameter | 8.7 Fr / 2.9 mm | 13.8 Fr / 4.6 mm | 18.6 Fr / 6.2 mm | 19.5 Fr / 6.5 mm |
Insertion Tube Outer Diameter | 8.4 Fr / 2.8 mm | 12.9 Fr / 4.3 mm | 17.4 Fr / 5.8 mm | 17.7 Fr / 5.9 mm |
Bending | U/D 210゜ | U/D 210゜ | U/D 210゜ | U/D 210゜ |
Depth of Field | 5mm ~ 100mm | 5mm ~ 100mm | 5mm ~ 100mm | 5mm ~ 100mm |
Working Length of Shaft | 650 mm | 650 mm | 650 mm | 650 mm |
LED Color Temperature | 5000K ~ 6500K | 5000K ~ 6500K | 5000K ~ 6500K | 5000K ~ 6500K |
Bronchoscope is used to access bronchus through the mouth, stoma with endotracheal tube or tracheotomy catheter. It allows the physician to extract tissue cells or secretions for pathology or bacterial culture.
Model | EN420E |
Resolution | 1280 × 800 pixel |
Frame Rate | 30 fps |
Depth of Field (DOF) | 15 mm to 50 mm |
FOV (D) | 80° ± 5 % |
Image Output Interface | USB Type C (socket) |
Size of Camera Module | OD: 4.2 ± 0.2 mm；L: 16.0 ± 0.2 mm |
Luminance | 15 lm ± 10 % |
Tube Length | 22.0 cm ± 0.5 cm |
E.N.T. Endoscope is used primarily by healthcare professionals, especially ear, nose, and throat (ENT) specialists and general practitioners to examine the ears and diagnose various ear-related conditions.
